XFP-10G-ZR 10G XFP Transceiver , Single Mode Optical Transceiver Modules 120km 1550nm

Product Categories
Shenzhen Nufiber Systems Technology Co., Ltd.
Contact Now

XFP-10G-ZR 10G XFP Transceiver , Single Mode Optical Transceiver Modules 120km 1550nm

Brand Name : NuFiber

Model Number : XFP-10G-ZR

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union,Credit Card

Supply Ability : 10,000 pcs per month

Delivery Time : Within 1-3 work days

Packaging Details : 10pcs/plastic bag, 500pcs/carton

Data Rate : 10Gb/s

Wavelength : 1550nm

Distance : 120km

Connector : LC

DDM : Support

Fiber Type : singlemode duplex

Power Supply : 3.3V

Working Temperature : 0~70℃

Warranty : 1 year

Compatibility : Cisco, HP, Huawei, Finisar...

Manufacturer : Yes

Contact Now

10Gb/s XFP Transceiver XFP-10G-ZR dual fiber singlemode 120km 1550nm LC DDM

Description

Nufiber XFP-10G-ZR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for SONET/SDH and Ethernet applications up to 120km optical links.



Features

  • Support multi protocol from 9.95Gb/s to 11.3Gb/s
  • Hot pluggable 30 pin connector
  • Compliant with XFP MSA
  • Transmission distance of 120km over single mode fiber
  • 1550nm Cooled EML laser transmitter.
  • APD Receiver
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor
  • XFI electrical interface with AC coupling
  • Power supply voltages : +3.3V, +5V
  • Temperature range 0°C to 70°C
  • Power dissipation: <3.5W
  • RoHS Compliant Part



Applications

  • 10GBASE-ZR/ZW Ethernet
  • SONET OC-192 / SDH STM-64 ITU-T G.959.1 P1L1-2D2
  • 120km 10G LC
  • Other optical links



Optical Parameters



Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Operating Date Rate BR 9.95   11.3 Gb/s
Bit Error Rate BER     10-12
Maximum Launch Power PMAX 1   +5 dBm 1
Optical Wavelength λ 1530 1550 1565 nm
Optical Extinction Ratio ER 8.2     dB
Spectral Width Δλ     1 nm
Sidemode Supression ratio SSRmin 30     dB
Rise/Fall Time (20%~80%) Tr/Tf     35 ps
Average Launch power of OFF Transmitter POFF     -30 dBm
Tx Jitter Txj Compliant with each standard requirements
Optical Eye Mask   IEEE802.3ae 2
Receiver
Operating Date Rate BR 9.95   11.3 Gb/s
Receiver Sensitivity Sen     -24 dBm 2
Maximum Input Power PMAX -7     dBm 2
Optical Center Wavelength λC 1260   1600 nm
Receiver Reflectance Rrx     -27 dB
LOS De-Assert LOSD     -24 dBm
LOS Assert LOSA -34     dBm
LOS Hysteresis LOSH 0.5   5 dB


























































Ordering information

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver

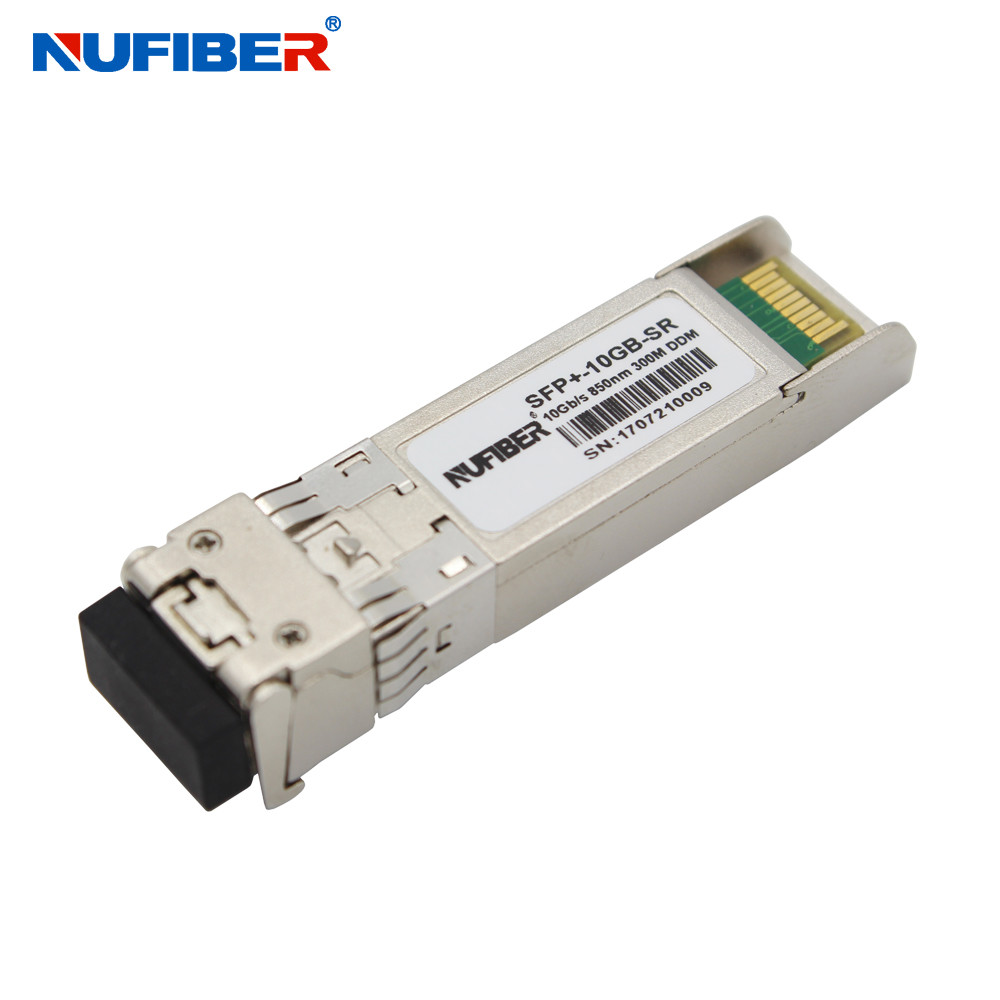

SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
