1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver

Name: 1270 1330nm TX RX 20km 10G SFP Module WDM Single Mode 10G SFP Bidi Transceiver
Brand: NUFIBER
Price: 99 USD

Buy cheap 1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver product

Brand Name : NUFIBER

Model Number : SFP-10G-BX20-SM1270/1330

Certification : CE FCC

Place of Origin : China

MOQ : 1 pair

Price : USD99~135 per pair

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 pcs per month

Delivery Time : 1-3 work days

Packaging Details : 10pcs/plastic bag, 200pcs/carton

Product Name : 10Gb/s SFP+ Module

Wavelength : 1330nm/1270nm

Distance : 20KM

Connector : LC Interface

DDM : Support

Fiber Type : Single Mode single fiber

Power Supply : 3.3V

Working Temperature : 0~70℃

Warranty : 1years

Compatible : Any Brand

Contact Now

10G SFP+ WDM Single mode 1270/1330nm TX / 1330/1270nm RX 20km 10G SFP Module 10G SFP bidi Transceiver

Description:

NuFiber SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features:

Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
Single LC for Bi-directional Transmission
Maximum link length of 20km
Built-in 1270/1330 WDM Filter
Uncooled 1270nm or 1330nm CWDM DFB Laser.
Power dissipation <1.5W
No Reference Clock required
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS Compliant Part

Applications:

² 10GBASE-LR/LW Ethernet

² SONET OC-192 / SDH

² 10G Fiber Channel

Optical Parameters:

Parameter		Symbol	Min	Typ	Max	Unit	Ref.
Transmitter
Bit Rate		BR	9.9		11.3	Gb/s
Optical Wavelength	SFP-10G-BX20-SM1270	λ	1260	1270	1280	nm
Optical Wavelength	SFP-10G-BX20-SM1330		1320	1330	1340	nm
Average output power		Po	-2		3	dBm
Optical Extinction Ratio		ER	3.5			dB
Spectral width		Δλ			1	nm
Side Mode Suppression Ratio		SMSR	30			dB
Optical Eye Mask			Compliant with IEEE802.3ae
Receiver
Bit Rate		BR	9.9		11.3	Gb/s
Optical Wavelength	SFP-10G-BX20-SM1270	λ	1320	1330	1340	nm
Optical Wavelength	SFP-10G-BX20-SM1330		1260	1270	1280
Receiver Sensitivity		Sen			-14.5	dBm	1
Maximum Input Power		PMAX	0			dBm
LOS De-Assert		LOSD			-15	dBm
LOS Assert		LOSA	-25			dBm
LOS Hysteresis		LOSH	0.5		4	dB

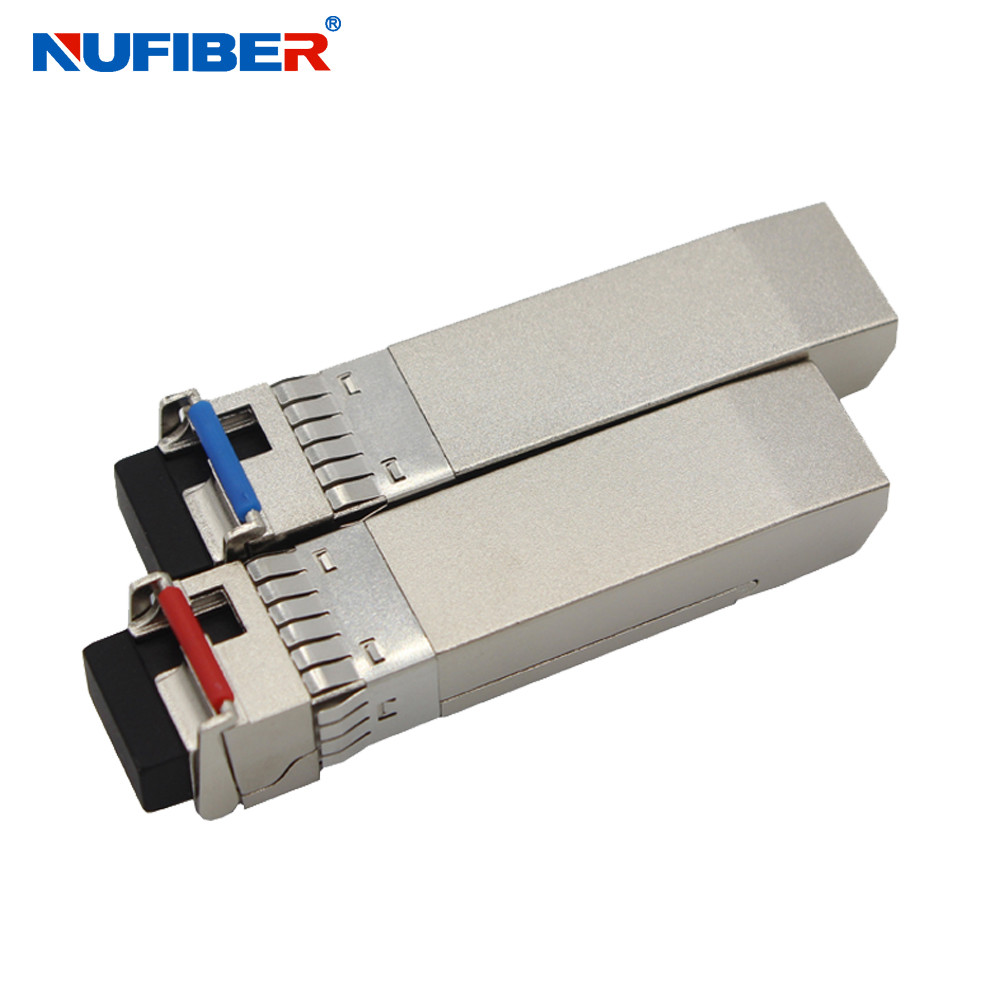

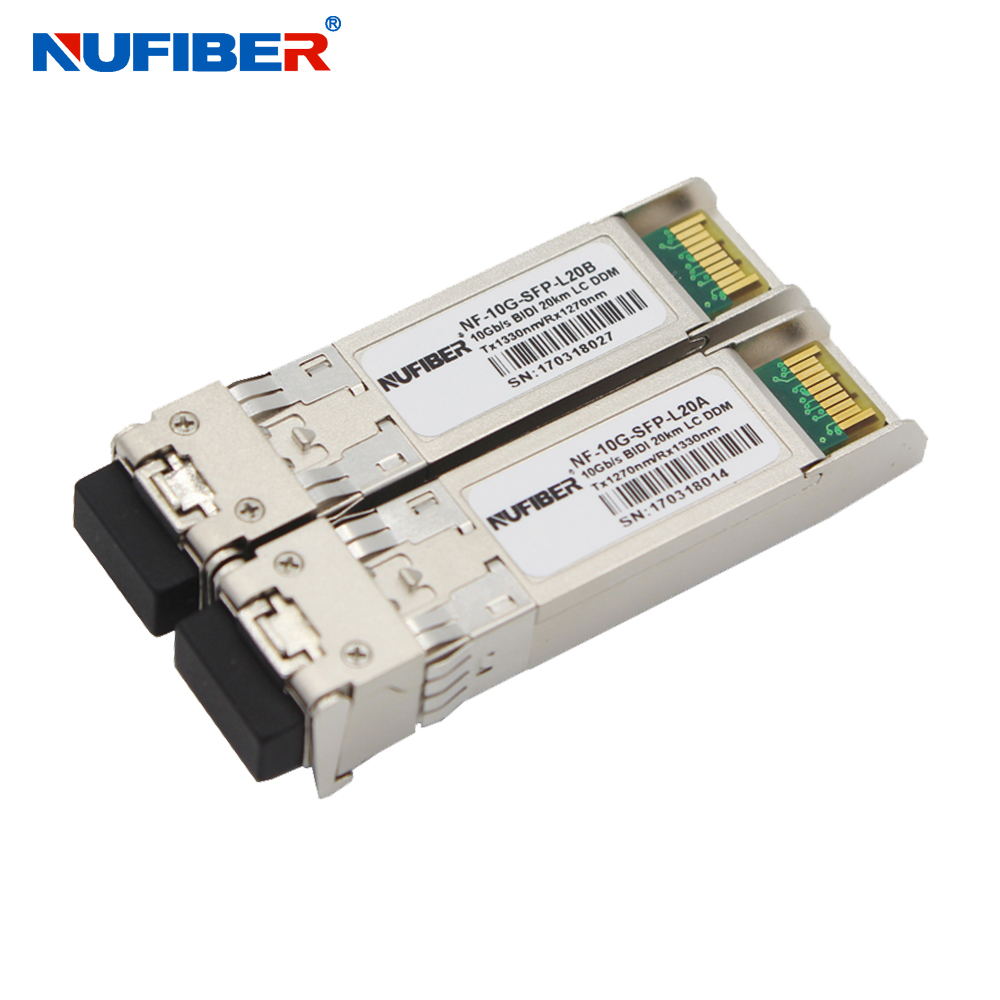

Products Show:

Packing:

1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver

Shipping:

1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver

Welcome to send us inquiry for this products.
