100G QSFP28 SR4 100M MPO 850nm Fiber Optical Transceiver

Name: 100G QSFP28 SR4 100M MPO 850nm Fiber Optical Transceiver
Brand: NuFiber
Price: 1 USD

Buy cheap 100G QSFP28 SR4 100M MPO 850nm Fiber Optical Transceiver product

Brand Name : NuFiber

Model Number : QSFP28-100G-SR4

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union,Credit Card

Supply Ability : 10,000 pcs per month

Delivery Time : Within 1-3 work days

Packaging Details : 4pcs/plastic plate,

Data Rate : 100Gb/s

Wavelength : 850nm

Distance : 100m

Connector : MPO

DDM : Support

Fiber Type : SMF

Power Supply : 3.3V

Working Temperature : 0~70℃

Warranty : 1 year

Compatibility : Huawei, Cisco, HP, H3C...

Manufacturer : Yes

Contact Now

QSFP28-100G-SR4 100G QSFP28 SR4 100m MPO 850nm Fiber Optical Transceiver 100g Qsfp28 Module

(QSFP28-100G-SR4)

QSFP28-100G-SR4 100Gb/s QSFP28 Transceiver MPO 100M MMF 850nm compatible Cisco huawei H3c HP

Features

4 independent full-duplex channels
Up to 27.95Gbps per channel bandwidth
Aggregate bandwidth of > 100Gbps
MTP/MPO optical connector
QSFP28 MSA compliant
Power Consumption<3.5W
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Digital diagnostic capabilities
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant Part

Applications

Local Area Network (LAN)
Wide Area Network (WAN)
Ethernet switches and router applications

Optical Parameters

Parameter	Symbol	Min	Typ		Max	Unit	Note
Data Rate per Channel		-	25.78125			Gbps
Power Consumption		-	2.5		3.5	W
Supply Current	Icc		0.75		1.0	A
Control I/O Voltage-High	VIH	2.0			Vcc	V
Control I/O Voltage-Low	VIL	0			0.7	V
Inter-Channel Skew	TSK				150	Ps
RESETL Duration			10			Us
RESETL De-assert time					100	ms
Power On Time					100	ms
Transmitter
Single Ended Output Voltage Tolerance		0.3		4		V	1
Common mode Voltage Tolerance		15				mV
Transmit Input Diff Voltage	VI	120		1200		mV
Transmit Input Diff Impedance	ZIN	80	100	120
Data Dependent Input Jitter	DDJ			0.1		UI
Data Input Total Jitter	TJ			0.28		UI
Receiver
Single Ended Output Voltage Tolerance		0.3		4		V
Rx Output Diff Voltage	Vo		600	800		mV
Rx Output Rise and Fall Voltage	Tr/Tf			35		ps	1
Total Jitter	TJ			0.7		UI
Deterministic Jitter	DJ			0.42		UI

Ordering information

100G QSFP28
QSFP28-100G-SR4	103.1 Gbp	850nm	MMF	MTP/MPO	100m	VCSEL 850nm
QSFP28-100G-LR4	103.1 Gbp	1310nm	SMF	LC duplex	10km	DML 1310nm
QSFP28-100G-ER4	103.1Gbps	1310nm	SMF	LC Duplex	25km-40km	4x EML
QSFP28-100G-PSM4	103.1 Gbp	1310nm	SMF	MTP/MPO	500m	4x DFB
QSFP28-100G-LR-S	103.1 Gbp	1310nm	SMF	MTP/MPO	2km	4x DFB
QSFP28-100G-CWDM4-S	103.1 Gbp	CWDM	SMF	LC duplex	2km	DML CWDM
QSFP28-100G-CWDM4-S	103.1 Gbp	1271~1331nm	SMF	LC duplex	2km	DML CWDM
QSFP28-100G-CWDM4-L	103.1 Gbp	CWDM	SMF	LC duplex	10km	DML CWDM
QSFP28-100G-CWDM4-L	103.1 Gbp	1271~1331nm	SMF	LC duplex	10km	DML CWDM

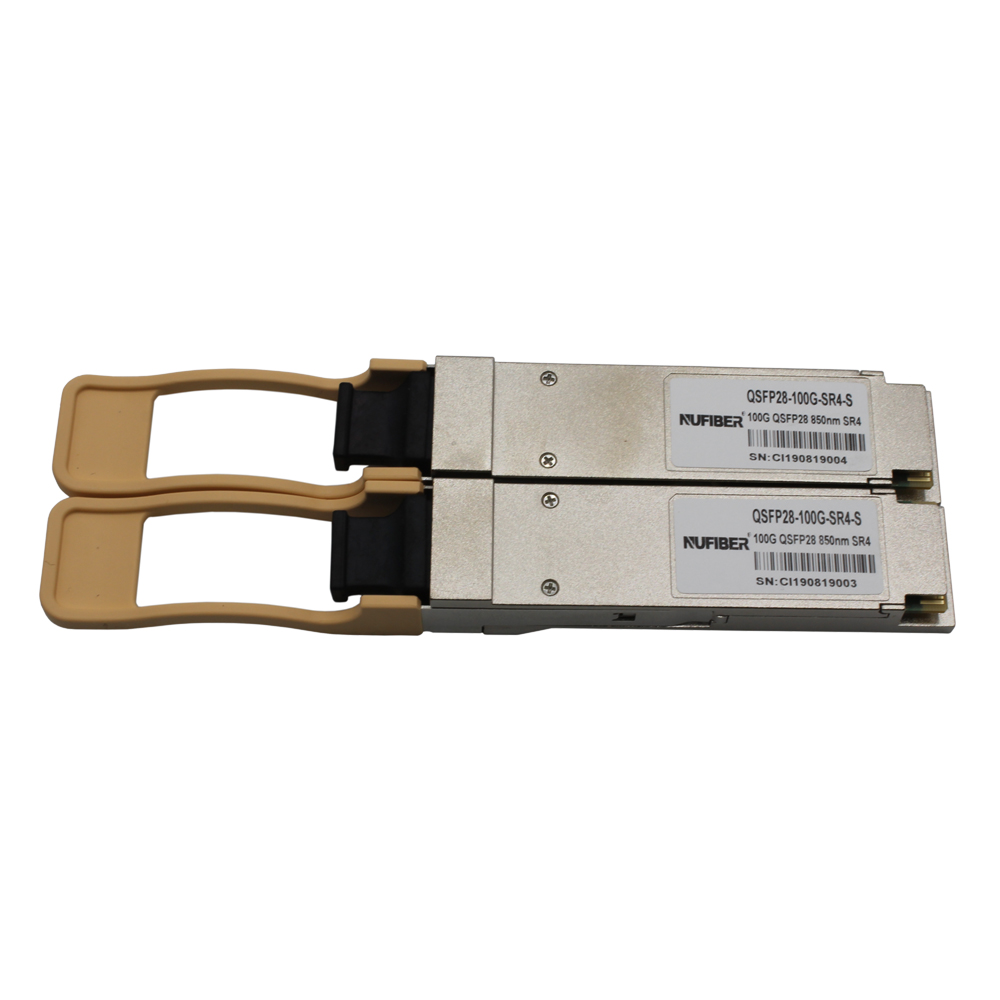

Products Show

Applications:

100G QSFP28 SR4 100M MPO 850nm Fiber Optical Transceiver

Packaging & Shipping

100G QSFP28 SR4 100M MPO 850nm Fiber Optical Transceiver
