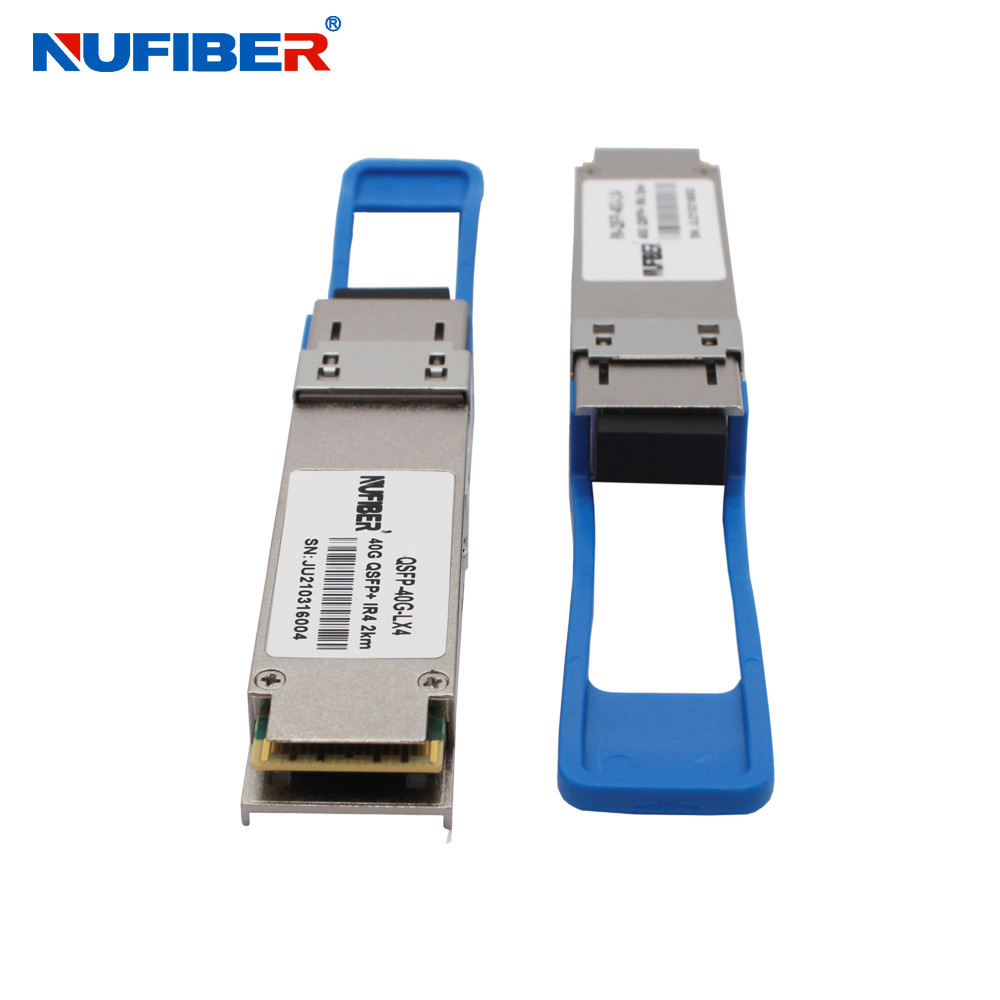

40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector

Brand Name : Nufiber

Model Number : QSFP-40G-LX4

Certification : CE FCC

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T, Western Union

Supply Ability : 1000 Piece/Week

Delivery Time : 2-3 days

Packaging Details : 10pcs/plastic bag,200pcs/carton

Data Rate : 40Gb/s

Distance : 150m(MMF OM3/OM4) or 2KM(SMF 1310nm)

Connector : LC

Fiber Type : Multi mode or Singlemode

Power Supply : 3.3V

Operating Temperature : 0~70℃

Warranty : 1 year

Manufacturer : yes

OEM : Support

Contact Now

QSFP-40G-LX4 40G Qsfp 2KM Singlemode 1310nm With LC Connector Support Huawei/Cisco/Aruba/HP/Juniper

QSFP-40G-LX4 QSFP 40G Duplex LC 1310nm support both of 2KM on SMF and 150m on OM3 MMF cable


Key Features

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

QSFP MSA compliant

Up to 150m on MMF(OM3),  2km on SMF transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

power consumption<2.5W

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant


Applicataion


Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-LR4 Ethernet Links



Optical Parameters(TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts)

ParameterSymbolMinTypMaxUnitRef.
Transmitter
Wavelength AssignmentL01264.512711277.5nm
L11284.512911297.5nm
L21304.513111317.5nm
L31324.513311337.5nm
Side-mode Suppression RatioSMSR30--dB
Total Average Launch PowerPT--8.3dBm
Average Launch Power, each Lane -7-2.3dBm
Difference in Launch Power between any two Lanes (OMA) --6.5dB
Optical Modulation Amplitude,each LaneOMA-4 +3.5dBm
Launch Power in OMA minus

Transmitter and Dispersion Penalty
(TDP), each Lane

 -4.8- dBm
TDP, each LaneTDP  2.3dB
Extinction RatioER3.5--dB

Transmitter Eye Mask Definition {X1,
X2, X3, Y1, Y2, Y3}



{0.25, 0.4,

0.45,

0.25,

0.28, 0.4}


Optical Return Loss Tolerance --20dB




























Ordering Information


QSFP-40G-SR440Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR440Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-ER440Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX440Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX440Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm



Products Show
40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector
 40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector

Packaging & Shipping
40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector40G QSFP 2KM Singlemode Transceiver 1310nm With LC Connector
