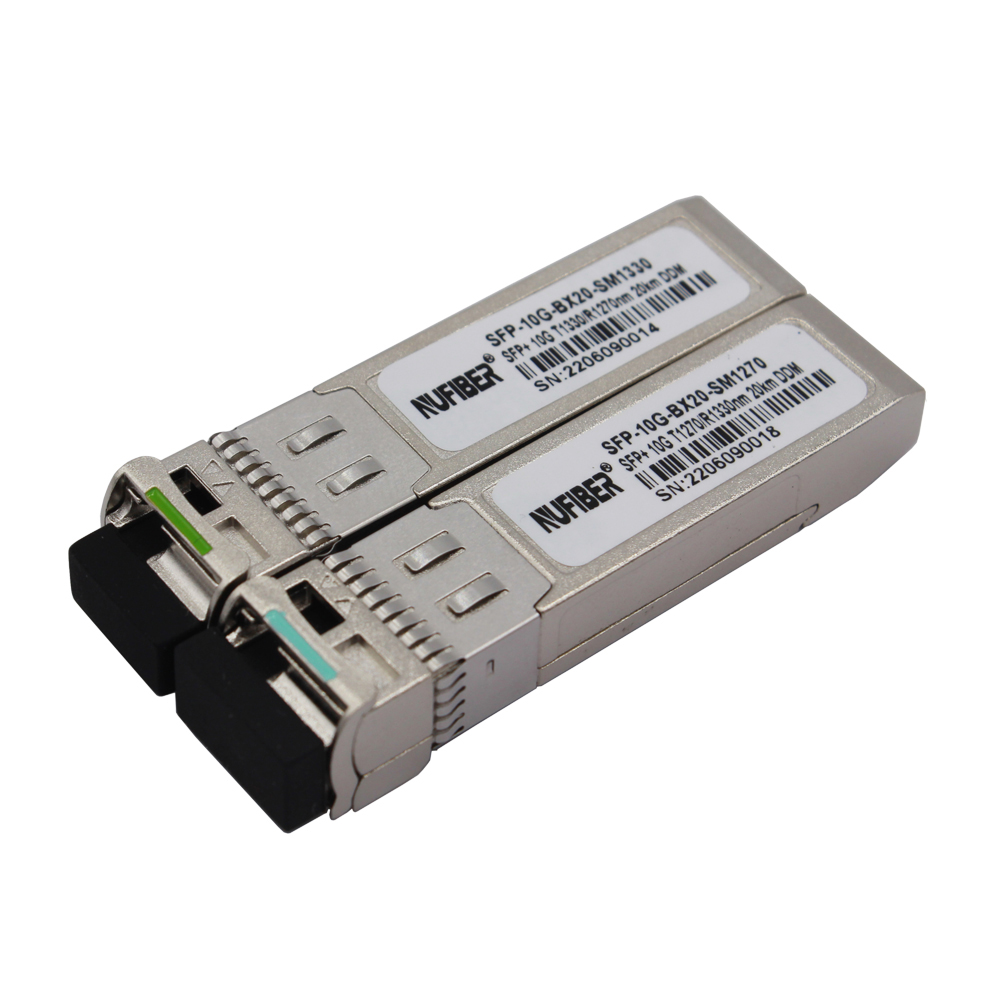

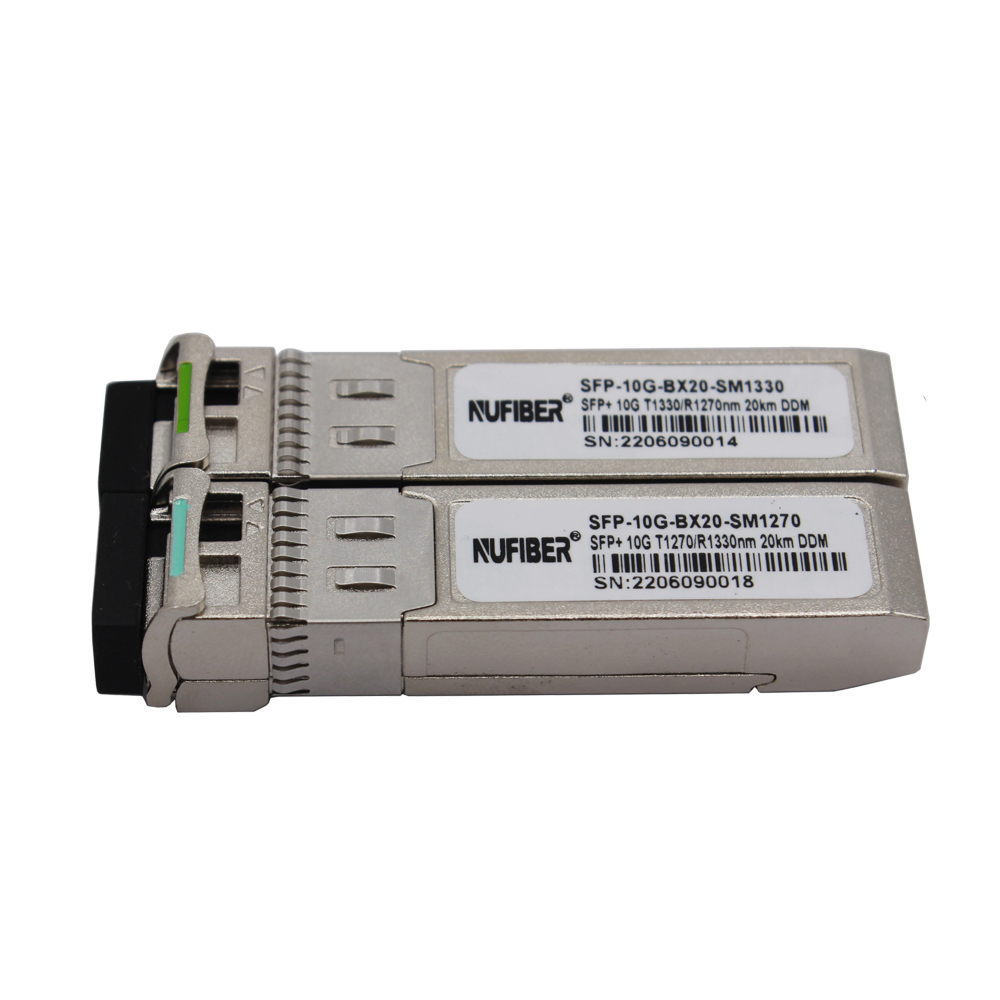

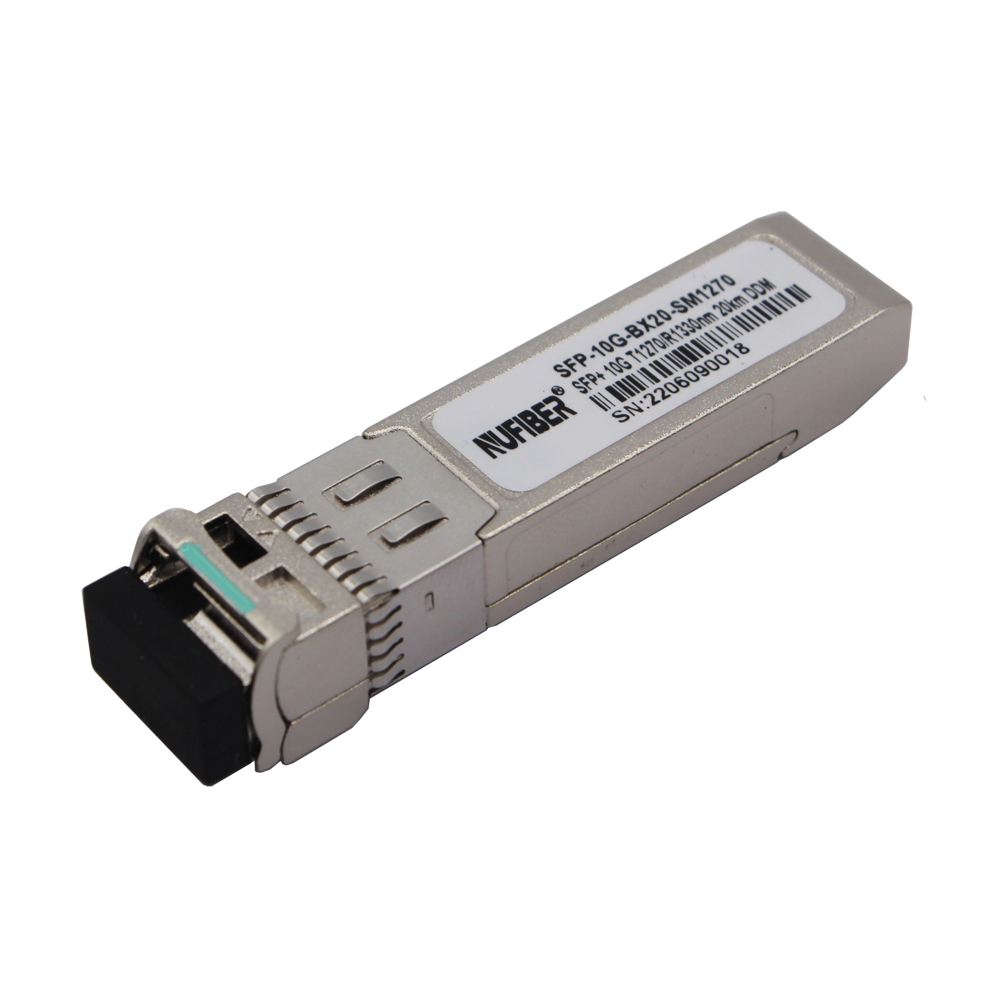

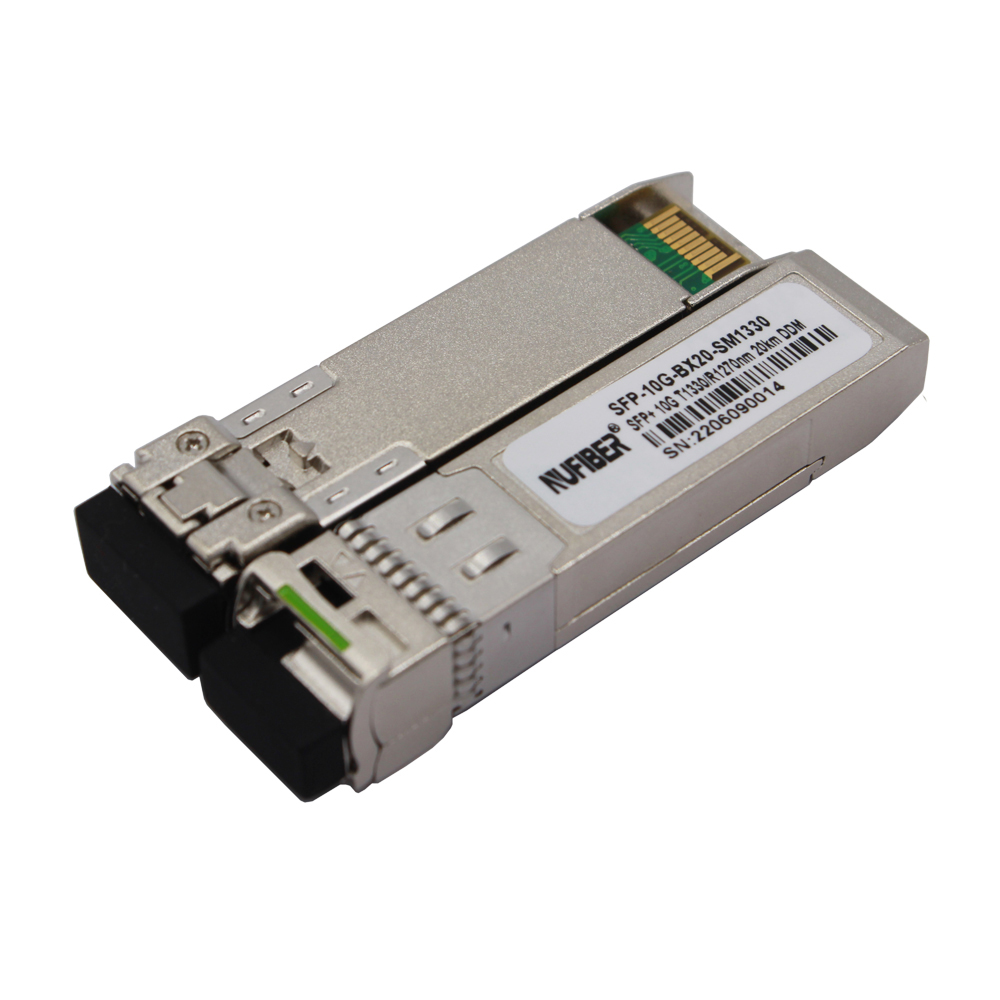

OEM 10G SFP+ WDM Module 10G BIDI SFP+ 1270nm/1330nm 20km LC DDM compatible with Juniper
Description:
NuFiber SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Features:
Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
Single LC for Bi-directional Transmission
Maximum link length of 20km
Built-in 1270/1330 WDM Filter
Uncooled 1270nm or 1330nm CWDM DFB Laser.
Power dissipation <1.5W
No Reference Clock required
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS Compliant Part
Applications:
10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G Fiber Channel
Optical Parameters:
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter |
| Bit Rate | BR | 9.9 | | 11.3 | Gb/s | |
| Optical Wavelength | SFP-10G-BX20-SM1270 | λ | 1260 | 1270 | 1280 | nm | |
| SFP-10G-BX20-SM1330 | | 1320 | 1330 | 1340 | |
| Average output power | Po | -2 | | 3 | dBm | |
| Optical Extinction Ratio | ER | 3.5 | | | dB | |
| Spectral width | Δλ | | | 1 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Optical Eye Mask | | Compliant with IEEE802.3ae | |
| Receiver |
| Bit Rate | BR | 9.9 | | 11.3 | Gb/s | |
| Optical Wavelength | SFP-10G-BX20-SM1270 | λ | 1320 | 1330 | 1340 | nm | |
| SFP-10G-BX20-SM1330 | | 1260 | 1270 | 1280 | | |
| Receiver Sensitivity | Sen | | | -14.5 | dBm | 1 |
| Maximum Input Power | PMAX | 0 | | | dBm | |
| LOS De-Assert | LOSD | | | -15 | dBm | |
| LOS Assert | LOSA | -25 | | | dBm | |
| LOS Hysteresis | LOSH | 0.5 | | 4 | dB | |
Ordering information:
| BiDi SFP Transmitter |
| Part Number | Product Description |
| 155Mbp/s SFP Transmitter |
| FE-BX20-SM1310/1550 | 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C |
| FE-BX40-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C |
| FE-BX80-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C |
| FE-BX100-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C |
| 1.25Gbps SFP Transmitter |
| GE-BX10-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C |
| GE-BX20-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C |
| GE-BX40-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C |
| GE-BX60-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C |
| GE-BX80-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C |
| GE-BX100-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C |
| 10Gbps SFP+ Transmitter |
| SFP-10G-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C |
| SFP-10G-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C |
| SFP-10G-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C |
| SFP-10G-BX80-SM1490/1550 | 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C |
Products Show:
Packing:
Shipping:
Welcome to send us inquiry for this products.
|
|
