5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera

Name: 5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
Brand: NuFiber
Price: 1 USD

Buy cheap 5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera product

Brand Name : NuFiber

Model Number : NF-PSE5114G

Certification : CE

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Delivery Time : 1-3 work days

Packaging Details : 20pcs/carton, carton size: 452*372*297mm

Material : Iron Case

Color : Black

Data Transfer Rate : 10/100/1000Mbps

Interface : 4POE+1SFP+1Uplink

Standard : IEEE802.3af/at

Total power : 65Watts

Power Supply : 48VDC

OEM & ODM : Accepted

Warranty : 12months

Contact Now

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera

Features

Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
4-Port 10/100/1000Mbps supports 48-57V DC power to PoE Powered Device
1 –Port 1.25Gbps SC/FC/ST/LC interface for uplink
Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
Up to 4 IEEE 802.3af devices powered
Supports PoE Power up to 15.4 watts for each PoE port
Up to 4 IEEE 802.3at devices powered
Supports PoE Power up to 30 watts for each PoE port
65-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
2M packet buffer
IEEE 802.1Q VLAN packet transparency support
Automatic address learning and address aging
Made of metal, desktop size and wall-mount design

Specifications

Item		Description
Model		NF-PSE5114G series
Power Supply	Power Supply Mode	Power adapter
	Voltage Range	DC52V
	Power Consumption	The device <5W, POE power supply <65W
Network Port Parameter	Network Ports	1～4 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink Fiber Port:1.25Gbps
	Transmission Distance	1~4 Ethernet Port:0~100m Uplink Fiber Port: 0-120KM Optional
	Transmission Media	1~4 Ethernet Port:Cat5e/6 standard UTP cable, Uplink Fiber Port: SC interface optical fiber
	PoE Agreement	IEEE802.3 af/at standards
	PoE Power Supply Mode	End-span method
	PoE Power Supply Wattage	Each port≤30W, Whole device<65W
Network Switch Specification	Network Standard	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
	Swap Mode	Store-and- forward
	Switch Capacity	12Gbps
	MAC Address List	8K
Status Indicators	Power Indicator Light	One power light (green)
	Optical Fiber Port Indicator	One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data
	PoE Indicator	1~4 PoE indicator light(yellow)
	PoE Network Port LED	1~4 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data
Protection Level	Surge Immunity	Level 3, executive standard:IEC61000-4-5
Protection Level	Electrostatic Protection	1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2
Operating Environment	Working Temperature	-10℃～55℃
	Storage Temperature	-40℃-85℃
	Humidity(non-congeal)	0~95%
Mechanical Attributes	Dimensions (LWH)	152mmx95mmx28.25mm
	Color	Black
	Weight	1kg
Reliability	Mean time between failures (MTBF)	＞50000h

Connection Diagram
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera

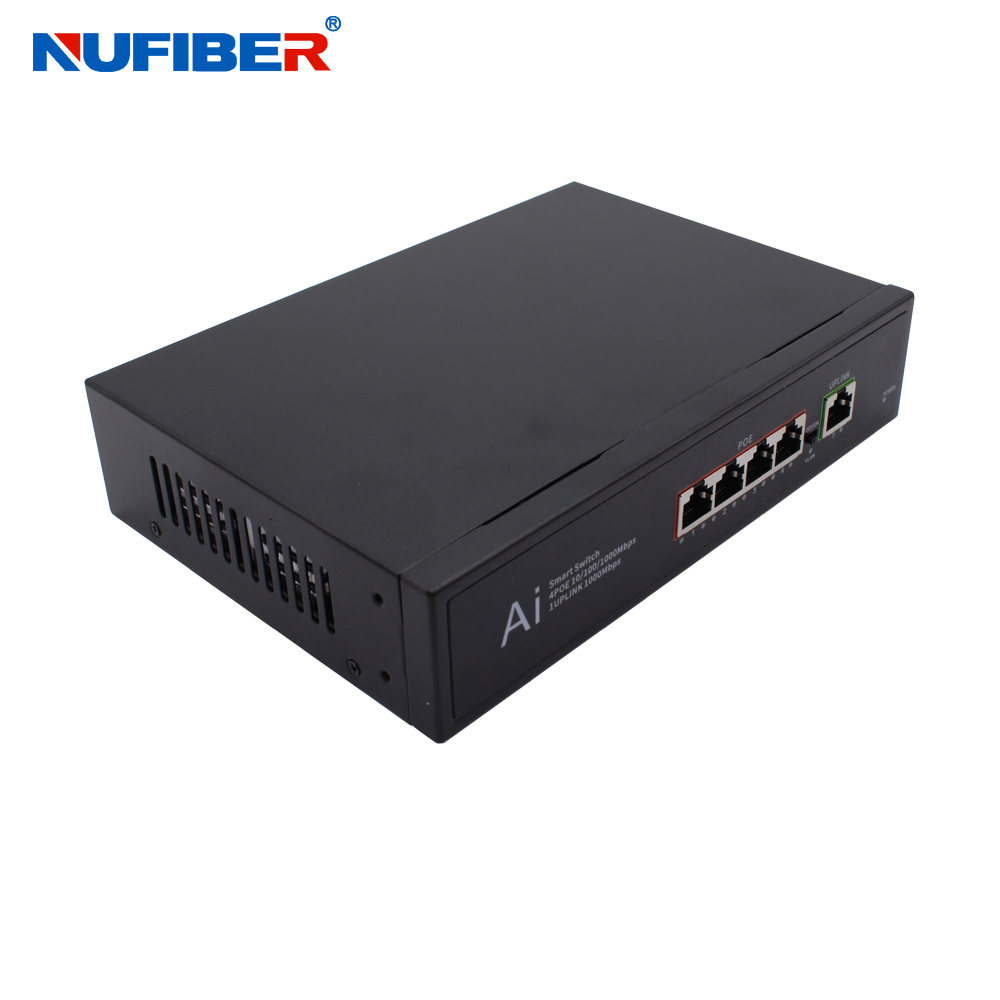

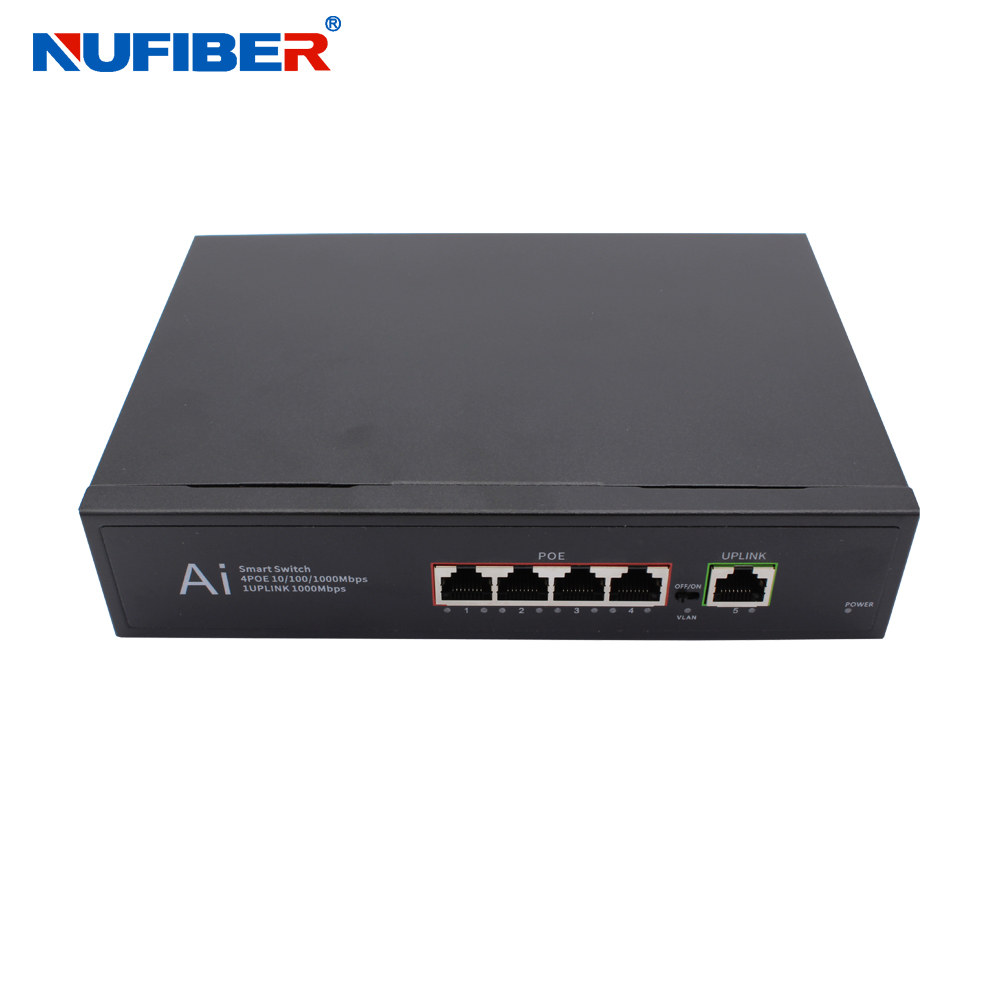

Product Show

CE certification

Packing Information

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
Shipping Method

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera Images
