Gigabit Single-mode to Multi-mode Fiber Converter 1000Mbps 850nm MM to 1310nm SM SC/ST/FC Media Converter
Overview
This Single Mode to Multimode Fiber Media Converter provides transparent conversion between single mode and multimode fiber networks, providing a cost-effective way to utilize two different types of fiber cabling.
The SM to MM Fiber media converter supports a total fiber connection distance of up to 10 KM.
Designed to offer a durable and convenient fiber conversion solution, the Single Mode to Multimode Fiber Media Converter features an all-steel chassis, and can be wall-mounted for out-of-the-way installations.
Key Features
Ø Easy to use and install
Ø Cost-effective way to utilize two different types of fiber cabling
Ø Converts single mode fiber to multi-mode fiber and vice-versa
Ø Supports 9/125um Single Mode or 50/125um, 62.5/125um Multi-Mode fiber cabling
Ø In conformity with safety code of FCC, CE and RoHS.
Technical Parameter
| Optical Interface | Connector | 1x9 SC/FC/ST, SFP LC |
| Data Rate | 100Mbps, 1000Mbps |
| Duplex Mode | Full duplex |
| Fiber | MM 50/125um,62.5/125um SM 9/125um |
| Distance | 10/100Mbps: MM 2km,SM 25/40/60/80/100/120km 10/100/1000Mbps: MM 550m/2km,SM 20/40/60/80km |
| Wavelength | MM 850nm,1310nm SM 1310nm,1550nm WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side) WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side) |
| Power Input | Adapter Type | DC5V |
| Power Built-in Type | AC100~240V |
| Power Consumption | ＜3W |
| Weight | Adapter Type | 0.39kg |
| Power Built-in Type | 0.67kg |
| Dimensions | Adapter Type | 94*70.5*26.5cm |
| Power Built-in Type | 140.5*111*30cm |
| Temperature | 0~50℃ Operating; -40~70℃ Storage |
| Humidity | 5~95%(no condensing) |
| MTBF | ≥10.0000h |
| Certification | CE,FCC,RoHS |

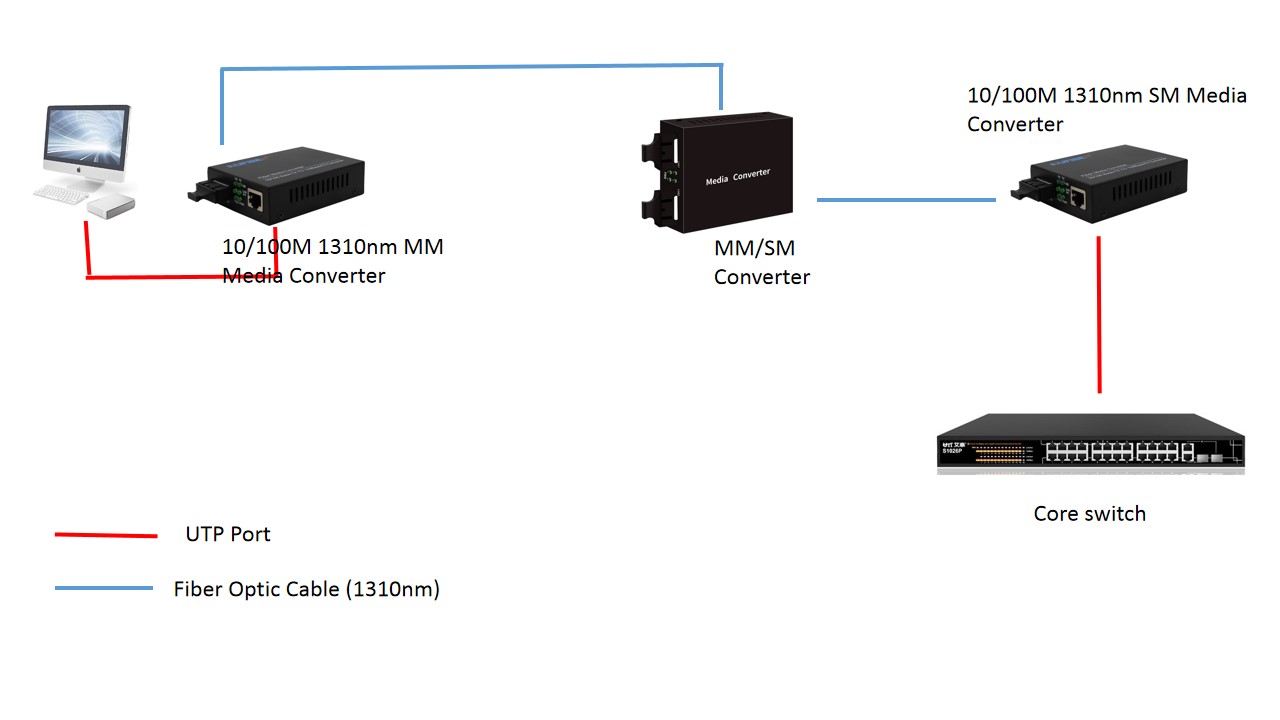

Connection Diagram

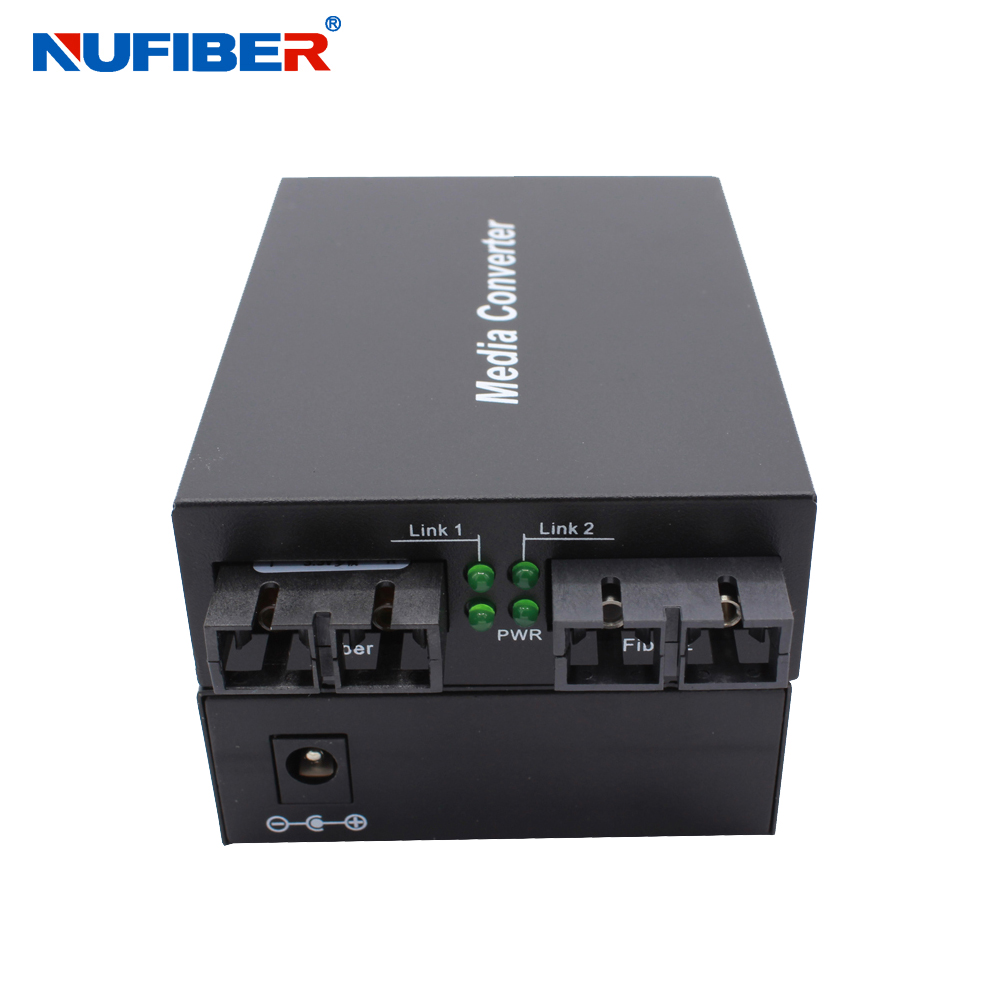

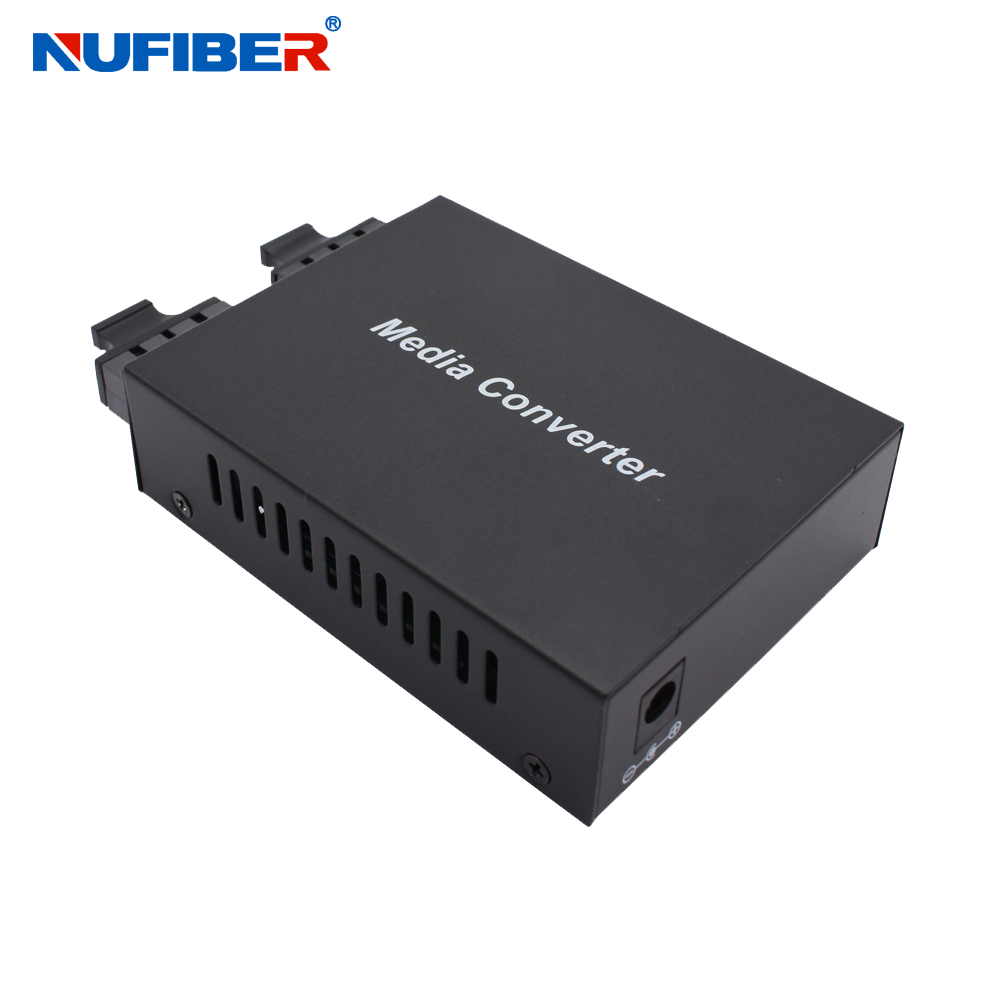

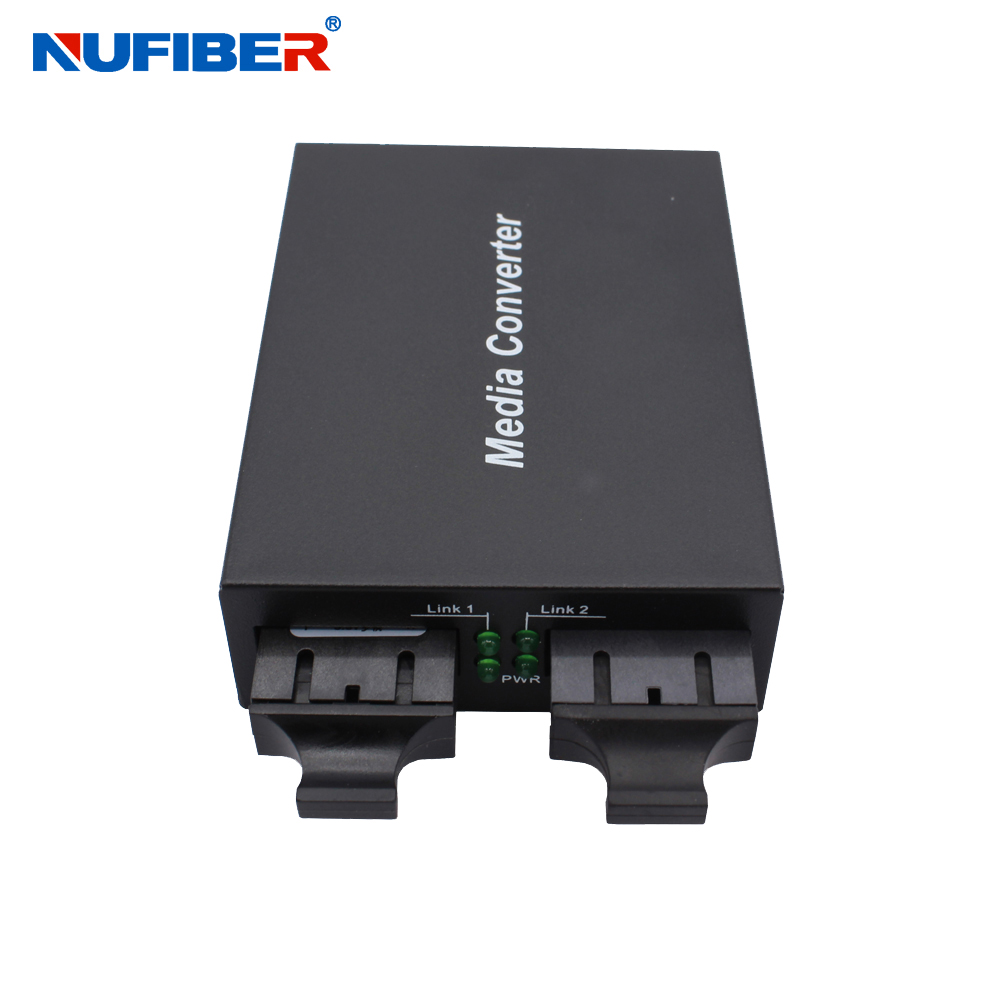

Products show
Packaging and shipping
|
|
Gigabit Single-mode to Multi-mode Fiber Converter 1000Mbps 850nm MM to 1310nm SM SC/ST/FC Media Converter Images
|
