Mini DVI Optical Extender EDID SM 1xLC 1000meters support 4Kx2K 1080P@60Hz
Single mode Single core LC 1000meters
Features:
*Connectors (for transmitter and receiver): one male DVI-D single link connector and one LC fiber connector.
*Supports resolutions up to 1920x1200 (WUXGA); refer to the resolution chart below for resolutions at different lengths.
*EDID learning for the support of any DVI display device.
*Low RFI/EMI.
*Laser Class 1 Safety compliant.
*Optical source: 1310 nm /1550nm.
*Supports 9/125um LC type multi-mode fiber optic cable.
*Frequency Bandwidth : 1.65Gbps (Single Link)
Dimensions
W* D* H: 59* 39* 15 mm
Power
Local unit: powered from attached computer.
Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
Cables
Use a simplex multimode LC50-micron (FIBER-S-LCLC-50-xM) or 62.5-micron multimode fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (1,000 meters).
Environmental
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -20°C ~+70°C
Description
The NUFIBER® DVI Extender via Fiber Optic Cable locates a single link digital DVI-D display up to 3,280 feet (1,000 meters) from a computer using a single LC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.
Ordering Information
| Model Number | Description |
| NF-101SB-T/R | DVI Extender Single core LC*1 Single mode 1000meters |
| NF-101MB-T/R | DVI Extender Single core LC*1 Multi mode 500meters |
| NF-201SB-T/R | DVI Extender Single core LC*2 Single mode 1000meters |
| NF-201MB-T/R | DVI Extender Single core LC*2 Multi mode 500meters |
| NF-401SB-T/R | DVI Extender Single core LC*4 Single mode 1000meters |
| NF-401MB-T/R | DVI Extender Single core LC*4 Multi mode 500meters |
Connection Diagram

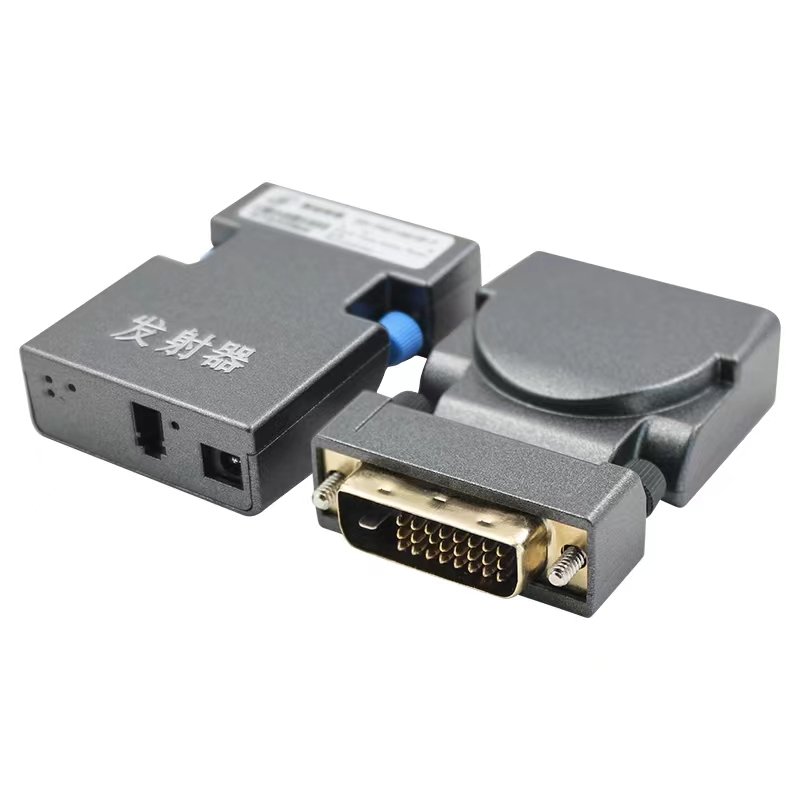

Product Show
Factory Show
